- SKU: ARC-I-Gold
- BARCODE: 00763492112698
- VENDOR: Tuttio

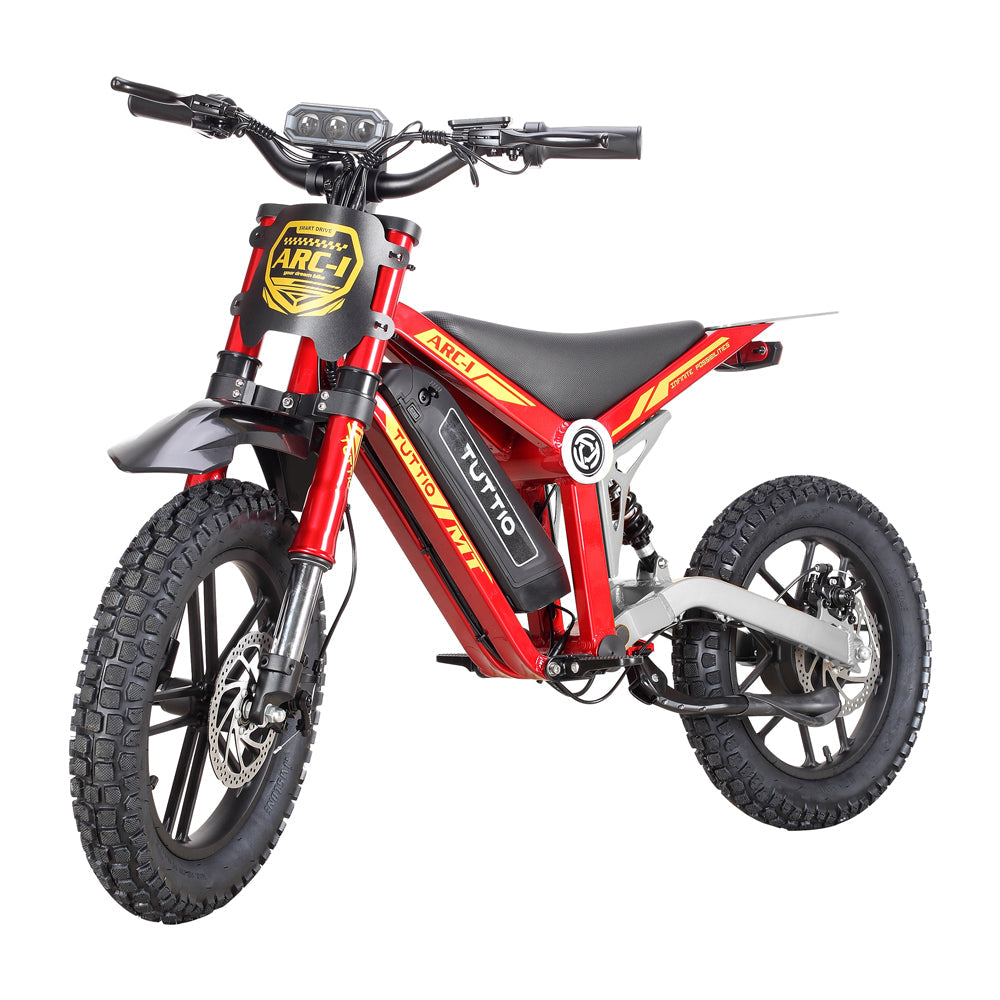

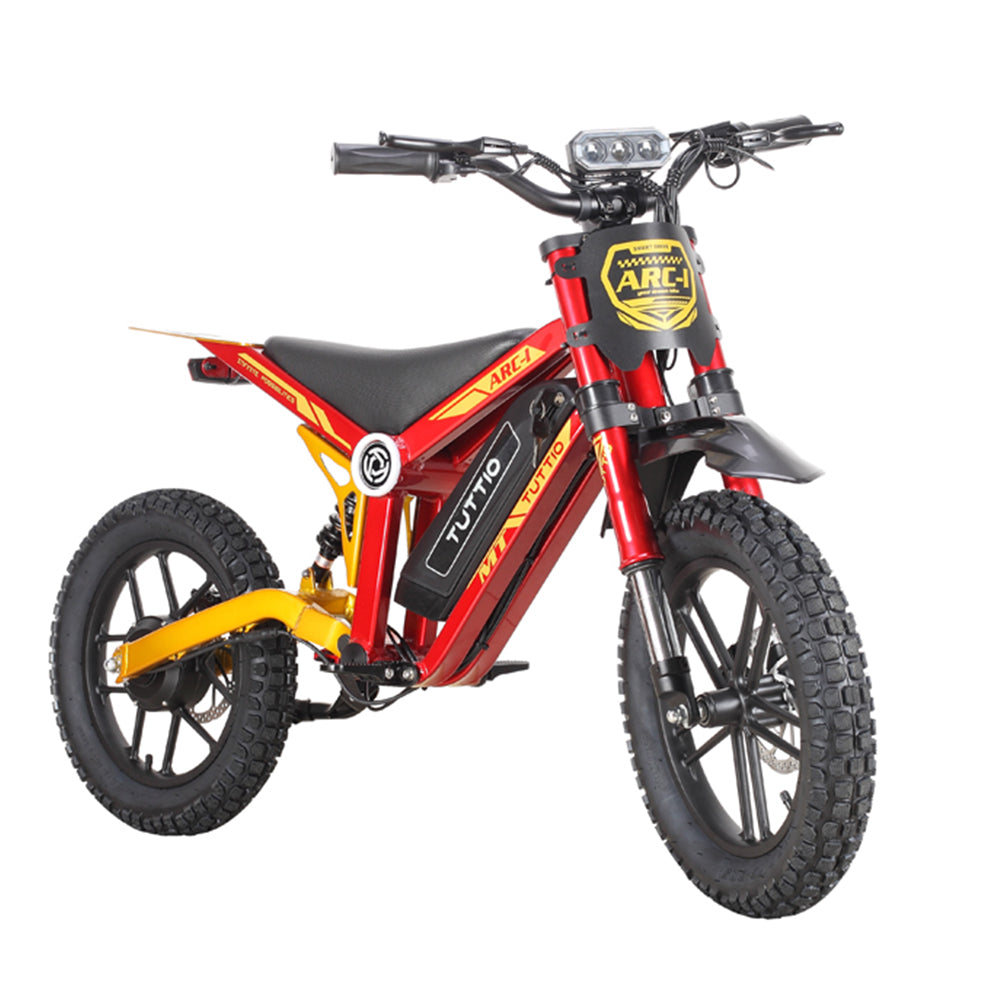

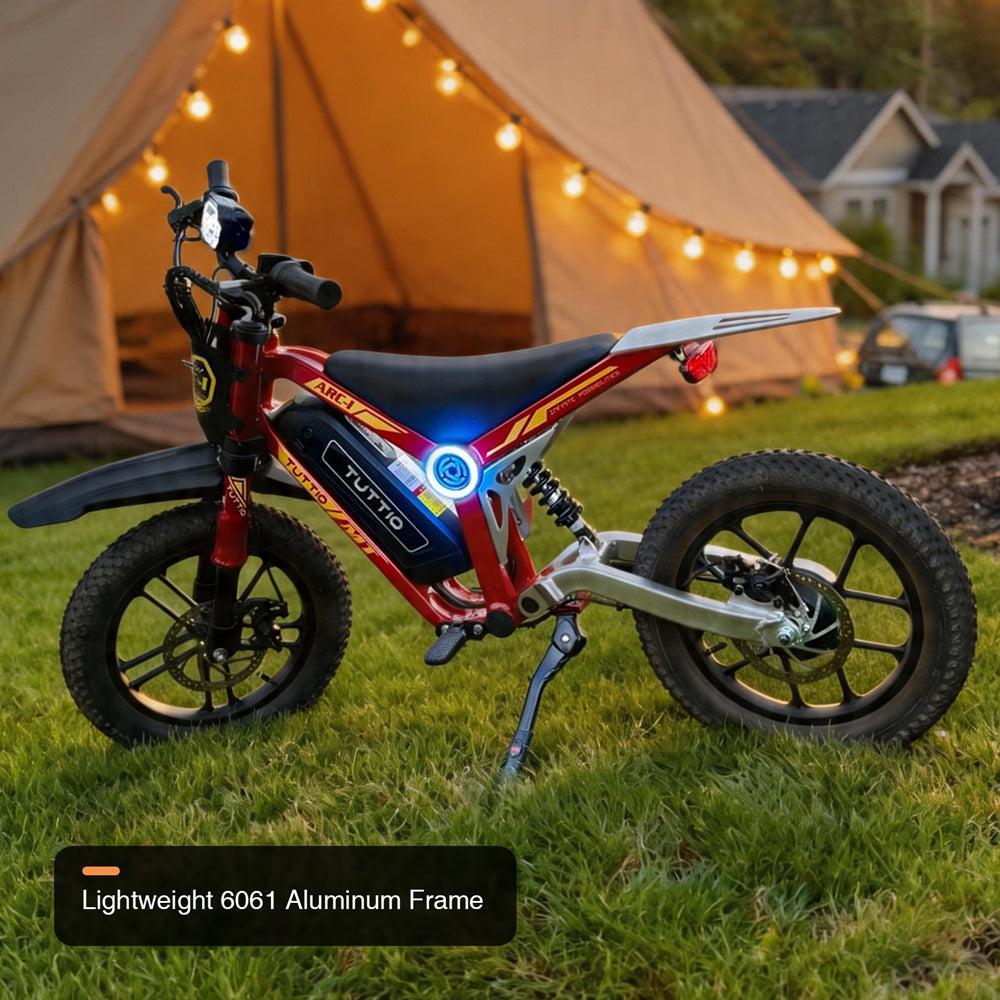

Tuttio ARC-I Kids Electric Bike
Shipping calculated at checkout.
Couldn't load pickup availability
Guaranteed Safe Checkout
Description

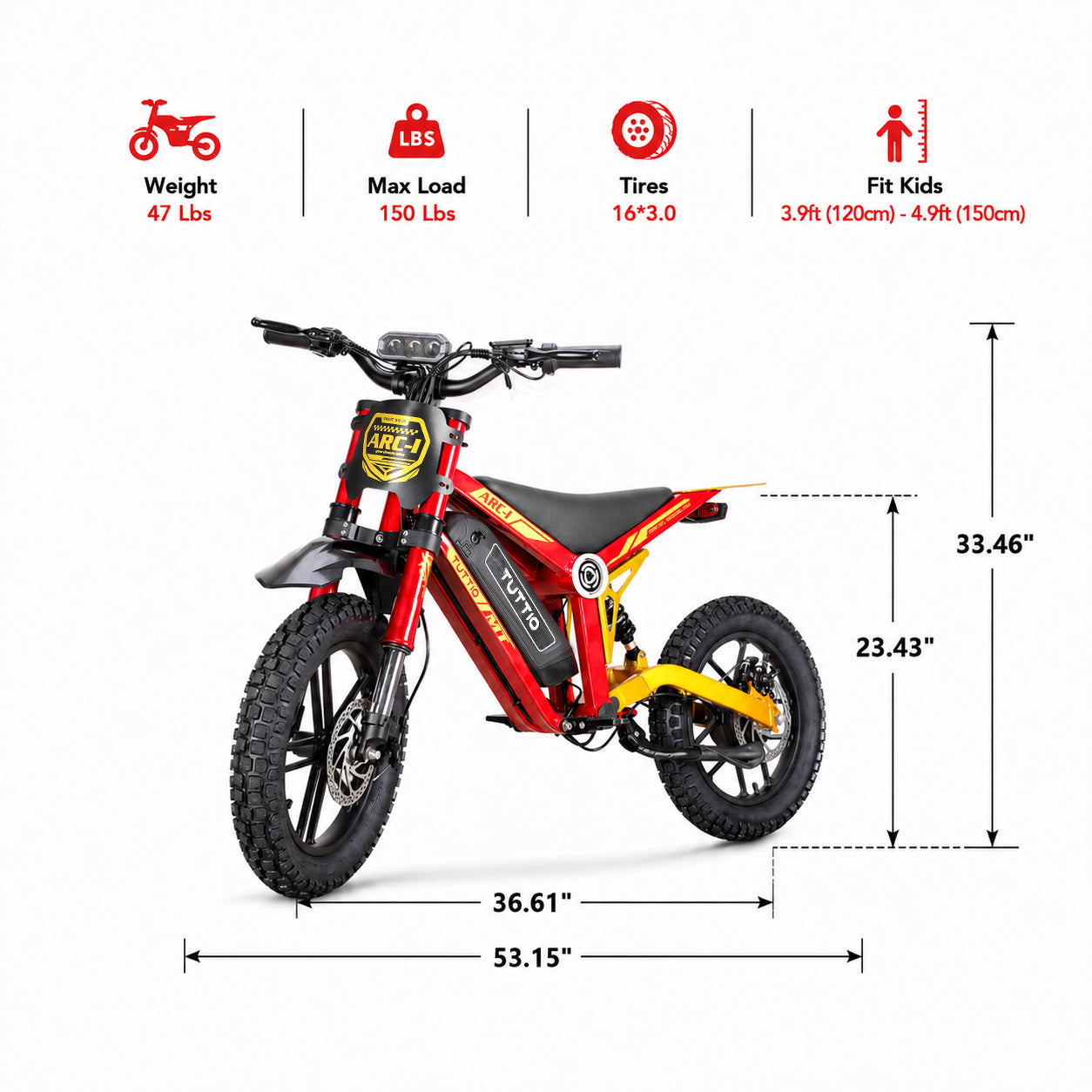

Size & Fit |
|
| Suitable Height | 3.9ft (120cm)~4.9ft(150cm) |
| Handlebar Width | 23.60"（600mm） |
| Seat Height | 23.40"（595mm） |
| Overall Length | 53.15"（1350mm） |
| Standing Height | 33.46"（850mm） |
| Maximum Load | 150 lbs（75kg） |
| Net weight | 47.40 lbs(21.5kg) |
| Package weight | 63.93 lbs(29kg) |
| Product Size | 13.78" x 33.46" x 23.62" (1350*850*600mm) |
| Package size | 53.94" x 8.66" x 29.53" (1370*220*750mm) |
Specifications |
|
| Model | ARC-I |
| Color | Gold, Silver |
| Battery | 36V 13Ah Lithium-ion Battery |

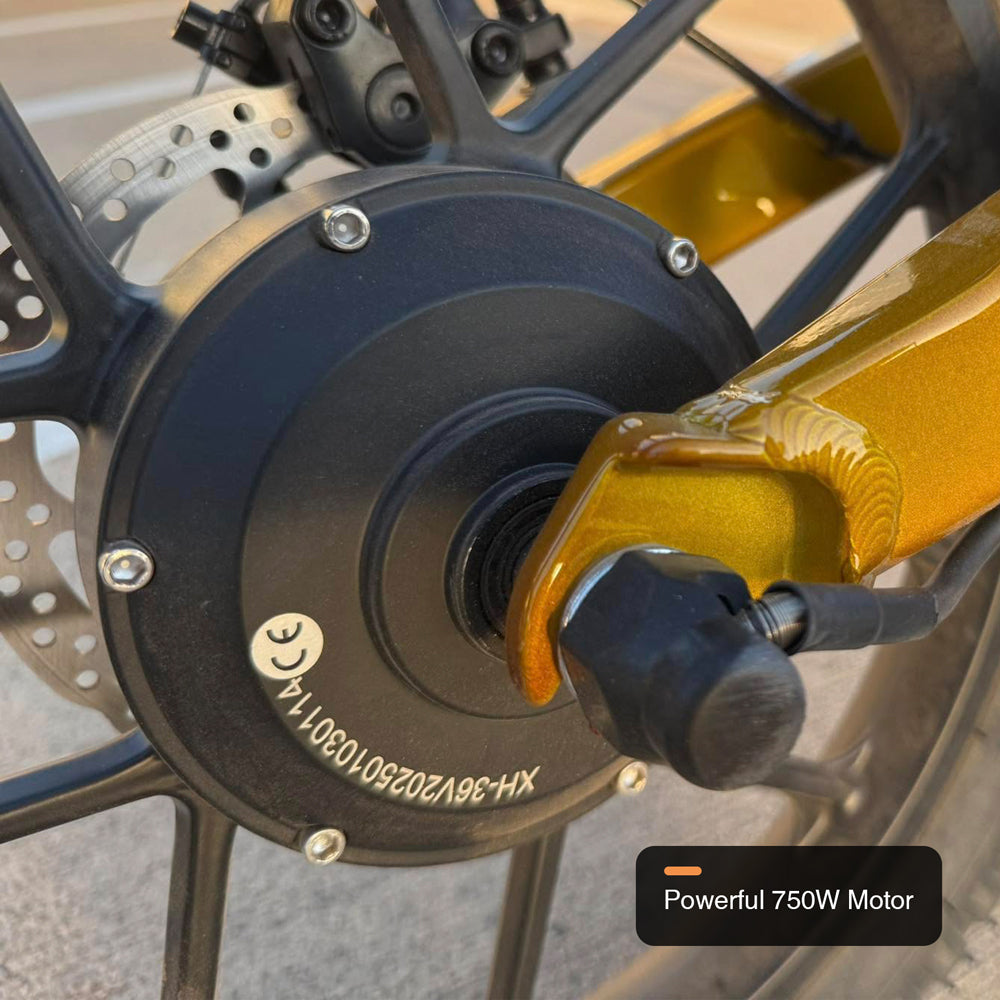

| Motor | 36V 750W Brushless Motor |
| Range | 25miles (40km) |
| Top Speed | 22mph (35km/h) For safety, the speed is limited to 15 Mph but can be unlocked. |
| Speed Mode | 5Gear, 7-10-13-17-22mph(11-16-21-28-35km) |
| Recommended Age | 8-13 Years Old |
| Max Climbing Capability | 45° |
| Tire | 16"x3.0" Tire |
| IP Rating | IPX4 |
| Charger Time | 6-8 Hrs |
| Charger | 36V1.5A Charger |
| Head Light | Yes |
| Tail Light | Yes |
| Horn | Yes |
Please note: Tuttio ebikes are designed for off-road use only. Be sure to check local laws before riding. Tuttio is not liable for any consequences due to unlawful use.
Care
Battery & Charging
Always charge your battery after each ride and avoid letting it drop below 20%. Use only the included charger and store the bike with the battery at 50–80% charge if not riding for an extended period. Keep the battery away from extreme heat or direct sunlight.
Suspension & Brakes
Inspect your KKE forks and rear coil shock periodically for oil leaks or damage. Check brake fluid levels every 3 months and replace pads when worn to 1–2mm. Test your hydraulic disc brakes before every ride — front and rear.
Drivetrain & Motor
The electric motor requires minimal maintenance, but keep the drivetrain clean and free of debris. Wipe down the motor housing after muddy or wet rides. Check all bolts and fasteners every 500 miles for tightness.
Tires & Wheels
Check tire pressure before each ride. Inspect the CST dual-sport tires regularly for cuts, cracks, or uneven wear. Spin each wheel to check for trueness and ensure the aluminum alloy rims show no cracks or impact damage.
Storage & Weather
Store your bike in a cool, dry place away from moisture. If riding in rain or mud, rinse with low-pressure water only — avoid directing water at electrical components, connectors, or the motor. Never submerge or pressure wash.
